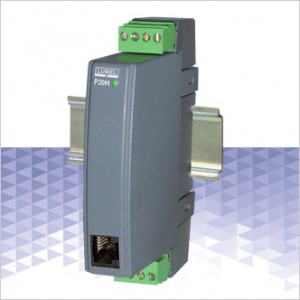

Transducers of P20H types are applied for the continuous conversion of d.c. voltage and d.c. current into a standard d.c. current, d.c. voltage signal or RS-485 digital signal.

The device fulfills the requirements of III installation’s category for the products designed to industrial application – see the video presenting, how important it is.

P20H型转换器适用于直流电压和直流电流转换为标准直流电流、直流电压信号或RS-485数字信号。

该设备满足了为工业应用设计的产品的III安装的要求——看视频展示，它有多重要。

Features

·         Input:
-100…0…+100 V, -600…0…+600 V d.c.,
-1…0…+1 A, -5…0…+5 A d.c.,

·         Output:: 0/4…20 mA, 0…10 V or RS-485 with MODBUS protocol.

·         Output signal galvanically isolated from the input signal and the supply.

·         Possible programming of following parameters through the PD14 programmer and the free LPCon program:

·         measurement averaging time,

·         conversion characteristic,

·         preservation of the output signal at overflows,

·         transmission parameters through RS-485.

·         Possible rescalling of the analog output acc. to the individual output characteristic.

·         Accuracy class: 0.2

·         Supply voltage: 85…253 Va.c. (45…65 Hz) or d.c.20…40 Va.c. (45…65 Hz) or d.c.

·         Overall dimensions: 22.5 x 120 x 100 mm.

特性

·         •输入:

·         -100…0…+ -100 V,100…0…+ 600 V。

·         1…0…+ 1A、5…0…+ 5A。

·         •输出:0/4…20 mA,0…10 V或rs - 485与MODBUS协议。

·         •从输入信号和电源中分离出输出信号。

·         •通过PD14程序员和免费的LPCon程序实现以下参数的可能编程:

·         •测量平均时间,

·         •转换特点,

·         •在溢出时保存输出信号，

·         •通过RS-485传输参数。

·         •可能的模拟输出acc的取消。对单个输出特性。

·         •精度等级:0.2

·         •电源电压:85…253 Va.c。(45…65 Hz)或特区。20 40 Va.c…。(45…65 Hz)或特区。

·         •整体尺寸:22.5 x 120 x 100毫米。
