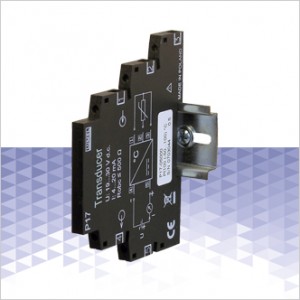

The P17 transducer is destined to convert the signal from temperature, resistance or voltage sensors into a 4…20 mA current signal.

P17转换器是要将信号从温度、电阻或电压传感器4…20 mA电流信号。

产品资料：

P17

P17_usermanual

Features

·         Can be treated as an active load forcing a current proportional to input signal changes from the supplying circuit,

·         Input:
voltage 0…10V, 0…60mV
temperature: thermocouples and thermoresistance sensors

·         Output: 4…20mA,

·         Supplied from a current loop,

·         Overall dimensions: 6.2 × 99 × 77mm.

特性

•可视为一种主动负荷，迫使电流成正比于供应电路的输入信号变化，

•输入:

电压0…10 v,0…60 mv

温度:热电偶和热阻传感器。

•输出:4…20 ma,

•由当前循环提供，

•外形尺寸:6.2×99×77毫米。
