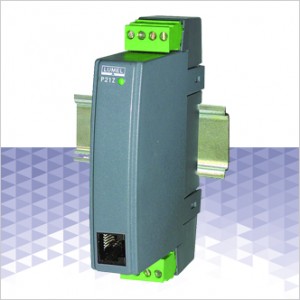

Measuring transducer P21Z type is destined to a continuous conversion of a.c. current or a.c. voltage without the constant component or frequency into a standard d.c. current or d.c. voltage signal or digital signal.

The transducer output signal is galvanically insulated from the input signal and the supply.The device fulfills the requirements of III installation’s category for the products designed to industrial application - see the video presenting, how important it is.

测量传感器P21Z类型的目标是连续转换a.c电流或a.c电压，而不将恒定分量或频率转换为标准直流或直流电压信号或数字信号。

换能器输出信号与输入信号和电源绝缘。该设备满足了为工业应用设计的产品的III安装的要求——看视频展示，它有多重要。

产品资料：

 p21z_datasheet

p21z_usermanual

Features

·         input:
100, 250, 400 V a.c.
1 A, 5A a.c.
20…50Hz

·         output:
0/4…20mA, 0…10V
RS-485  with Modbus protocol

·         programmable parameters by PD14 programmer and free eCon software

·         measurement averaging time,

·         converting characteristics

·         value of output signal when limit value are exceeded,

·         constraining output signal,

·         transmission parameters of RS485

·         external dimensions: 22,5 x 120 x 100mm.

特性

·         •输入:

·         100,250,400v。c。

·         1、5交流。

·         20…50赫兹

·         •输出:

·         0/4…20 ma,0…10 v

·         rs - 485与Modbus协议

·         •可编程参数的PD14程序员和免费的eCon软件。

·         •测量平均时间,

·         •转换特性

·         •超过限值时输出信号的值，

·         •限制输出信号,

·         •RS485的传输参数。

·         •外部尺寸:22,5x120 x 100mm。
