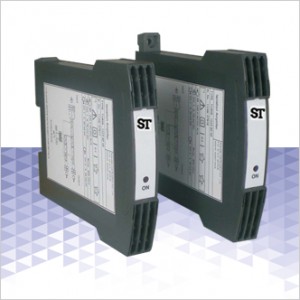

The purpose of the isolating amplifier Theta 60I is to electrically insolate input and output signals, respectively to amplify and / or change the signal level or type (current or voltage) of the input signals.

Theta 60I隔离放大器的目的是对输入信号和输出信号进行电化处理，分别放大和/或改变输入信号的信号电平或类型(电流或电压)。

产品资料：

Theta60I-manual

Features

·         252 standard input and output combinations selected by soldered jumpers

·         User-specific input and / or output ranges

·         Isolating amplifier with one input one or two electrically insulated outputs.

·         Power supply 24…60VDC/AC or 85…230VDC / AC

·         Electric Isolation between input, output and power supply, prevents falsified measurement due to spurious potentials.

·         Flexibillity provided by more than 250 different input and output combinations selected by simply positioning soldered jumpers, help in reduced stocking.

·         Processes unipolar/ bipolar and live zero signals provision for raising burden and signal conversion Green LED signals indicates device in operating condition.

·         High Electrical Insulation between input and output – 2.3KV, and power supply versus all Other Circuits-3.7 KV

·         Provision for either snapping the isolating amplifier on to top-hat rails or securing it with screw to a wall or panel.

特性

·         252标准输入和由焊接跳线选择的输出组合。

·         用户特定的输入和/或输出范围。

·         用一个或两个电绝缘输出隔离放大器。

·         电源直流/交流或24…85…230 vdc /交流

·         输入、输出和电源之间的电气隔离，防止由于虚假的电势而导致虚假的测量。

·         由250多个不同的输入和输出组合提供的灵活的组合，通过简单的定位焊接跳线，帮助减少库存。

·         处理单极/双极和实时零信号，用于提高负载和信号转换绿色LED信号表明设备处于运行状态。

·         输入和输出之间的高电气绝缘- 2。3kv，电源与所有其他电路之间-3.7 KV。

·         规定将隔离放大器安装到顶部的轨道上，或用螺丝固定在墙上或面板上。
