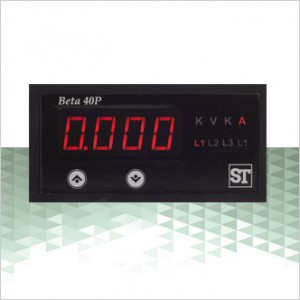

Beta 10P/20P/30P/40P The digital panel
meter Beta P Series have been designed for industrial applications, which
frequently require precise and on site adjustment of the display range, with
true RMS measurement the 4 digit fully programmable Digital Panel Meter,
measures AC Current / Voltage in a single / three phase network, available in
48×96 / 96×96 size. Universal features like I/P: V-100 to 500VLL programmable,
I-1/5A selectable, Aux: 40 to 300V AC/DC, click fit arrangement.
Beta 10P/20P/30P/40P数字面板表Beta P系列设计用于工业应用,经常需要精确的和现场调整显示范围,与真有效值测量4位数的完全可编程数字面板表,测量交流电流/电压在一个单/三相网络,可用8×96 / 96×96大小。通用功能，如I/P: V-100到500VLL可编程，I-1/ 5a选择，Aux: 40 - 300V AC/DC，点击安排。
产品资料：
Beta10P-20P-30P-40P-sifamtinsley_UK_datasheet
Beta-10P-20P-User-Manual
Beta-30P-40P-User-Manual
Features
True RMS measurementThe instrument
measures distorted waveform up to 15th Harmonic.
On site programmable PT/CT ratiosIt is possible to
program primary of external potential Transformer (PT) for Voltage DPM &
primary of external Current Transformer (CT) for Current DPM on site via front
panel keys by entering into Programming mode.
User selectable CT Secondary 5A/1AThe secondary of
external Current Transformer (CT) can be programmed on site to either 5A or 1A
for Current DPM using front panel keys.
User selectable PT SecondaryThe secondary of
external Potential Transformer (PT) can be programmed on site from 100 VLL to
500 VLL for Voltage DPM using front panel keys.
User selectable CT PrimaryThe Primary of current
transformer can be programmed on site from 1A to 999kA for Current DPM using
front panel keys.
User selectable PT PrimaryThe Primary of
Potential transformer can be programmed on site from 60 VLN to 999 kVLN for
single Phase Voltage DPM & 100VLN to 999 kVLL for three Phase Voltage DPM
using front panel keys.
User selectable 3 phase 3Wire or 4Wire or Single phase NetworkUser can program on site the network connection as either 3 Phase 3 Wire
or 4 Wire or single phase network using front panel keys.
Higher SecurityProvides Security with
user programmable password protection.
Onsite selection of Auto scroll / Fixed ScreenUser can set the display in auto scrolling mode or fixed screen mode
using front panel keys.
4 digits LED display (up to 9999)14mm or 20mm ultra
bright 4 digits LED display.
Function keysUsing two function
keys it is possible to Display various parameters in Current and Voltage DPM.
These function keys are also used for programming Password, Network selection,
CT/PT Primary & Secondary values, Reset min/max values, Auto ON/OFF mode
selection.
Screen No. storageIn case of power
failure, the instrument memorizes the last screen stored. For every 1 min. the
instrument stores the screen no. in the non-volatile memory.
Min Max storage of parameters possibleThe instrument
stores minimum and maximum values for System Voltage(in case of PGDV / PGD3V)
and System Current (in case of PGDA / PGD3A). Every 60 sec stored values are
updated.
Low back depthThe instrument has
very low back depth (behind the panel) of less than 54mm for 96×96 and 68mm for 48×96 type DPM.
Available in two different SizesDPM is available in
two different sizes 96×96 and 48×96.
EMC CompatibilityCompliance to
International standard IEC 61326.
特性
真正的RMS测量仪器测量扭曲的波形高达15次谐波。
在现场可编程的PT/CT比例上，可以通过进入编程模式，通过前面板键，将外部电压互感器(PT)的主外部电压DPM和外部电流互感器(CT)的主位进行编程。
用户可选择的CT辅助5A/1AThe二次的外部电流互感器(CT)可以在现场编程，以5A或1A为当前的DPM使用前面板按键。
用户可选择的PT二级-外部电压互感器(PT)可在现场编程，从100 VLL到500 VLL的电压DPM使用前面板按键。
用户可选择的电流互感器的主电流互感器，可以通过使用前面板按键，从1A到999kA进行现场编程。
使用前面板按键，可在现场编程，从60 VLN到999 kVLN(单相电压DPM, 100VLN)，到999 kVLL，可在现场编程。
用户可选择的三相三线或四线或单相网络用户可以将网络连接作为三相三线或四线或单相网络使用前面板按键。
更高的安全性提供了用户可编程密码保护的安全性。
自动滚动/固定屏幕用户的现场选择可以使用前面板按键设置自动滚动模式或固定屏幕模式。
4位数字LED显示(高达9999)14mm或20mm超亮4位LED显示。
功能键使用两个功能键，可以在当前和电压DPM中显示各种参数。这些功能键也可用于编程密码、网络选择、CT/PT主值和二级值、重置最小值/最大值、自动开启/关闭模式选择。
屏幕上没有。如果发生电源故障，仪器会记住最后一个屏幕。每隔1分钟，仪器就会储存屏幕。在非易失性内存。
最大限度地存储参数可能会存储系统电压(如PGDV / PGD3V)和系统电流(如PGDA / PGD3A)的最小和最大值。每60秒的存储值都会更新。
腰depthThe仪器已经非常低的深度(后面的面板)54毫米以下的为96×96和68毫米48×96型金刚石。
可以在两个不同的SizesDPM可在两个不同的大小96×96 48×96。
EMC兼容国际标准iec61326。
