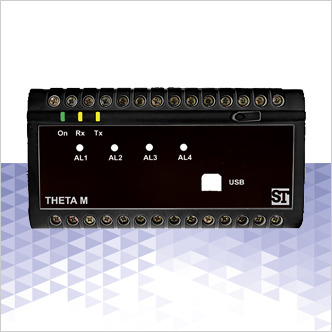

The Theta M transducer is used to measure and convert parameter of Three-phase 3W/4W AC power network with balanced or unbalanced system.

It ensures that the measurement and conversion of measured values into standard analog current signals.Relay outputs signal the overflow of the selected quantities, and the pulse output can be used for the consumption monitoring of the 3- phase active energy.

Theta M转换器测量和转换三相3W/4W交流电网的参数，该网络具有平衡或不平衡的系统。

它确保测量值和测量值转换为标准模拟电流信号。继电器输出信号为所选量的溢流，脉冲输出可用于3相主动能量的消耗监测。

产品资料：

SifamTinsley_Theta_M_manual

ThetaM-sifamtinsley_UK_datasheet

Features

• True RMS measurement
• Fully onsite programmable input PT & CT ratio
• Detection and signaling of incorrect phase sequence
• THD Measurement
• Programmable parameters through the RS-485 interface or USB when using the free eCon configuration software
• Onsite selectable analog output range (0…20mA/4…20mA/-20…+20mA)
• Fast and easy installation on DIN RAIL or onto a wall or in a panel using optional screw hole bracket
• Connection Terminal : Conventional Screw type

特性

•真有效值测量

•完全现场可编程输入PT和CT比。

•不正确的相序检测和信号。

•THD测量

•在使用免费的eCon配置软件时，通过RS-485接口或USB可编程参数。

•现场选择模拟输出范围(0…20 ma / 4…20 ma / -20…+ 20 ma)

•在DIN导轨上或墙上或面板上使用可选的螺丝孔支架快速、方便地安装。

•连接终端:常规螺旋型。
