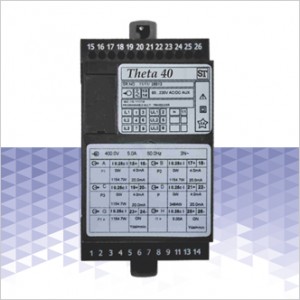

This series of multi-transducers simultaneously measure several variables of an electric power system and process them to produce 2 or 3 or 4 analogue output signals. 2 or 4 digital outputs are available for signaling limits or power metering. For two of the limit outputs up to 3 measurands can be logically combined.

这一系列的多转换器同时测量电力系统的几个变量，并处理它们产生2或3或4个模拟输出信号。2或4个数字输出可用于信号限制或功率计量。对于两个极限输出，最多可达3个量值，可以逻辑地组合。

产品资料：

Theta40-datasheet

Theta40-manual

Features

·         For all heavy-current power system variables

·         Upto 6 outputs (2A + 4D or 4A + 2D or 2A or 3A)

·         Input voltage up to 693 V (phase-to-phase)

·         Universal analogue outputs (programmable)

·         High accuracy: U/I 0.2%, Frequency 0.15% and P 0.25% (under reference conditions)

·         Universal digital outputs (meter transmitter, limits)

·         AC/DC power supply/universal (24-80V AC/DC or 85-230V AC/DC)

·         Windows software with password protection for programming, data analysis, power system status simulation, acquisition of meter data and making settings

特性

•对于所有的大电流电力系统变量。

•高达 6输出(2A + 4D或4A + 2D或2A或3A)

•输入电压高达693伏(相位对相)

•通用模拟输出(可编程)

•高精度:U/I 0.2%，频率0.15%，P 0.25%(参考条件下)

•通用数字输出(仪表发射机，极限)

•交流/直流电源/通用(24-80V交流/DC或85-230V交流/直流)

•windows软件具有编程、数据分析、电力系统状态模拟、仪表数据采集和设置等功能。
